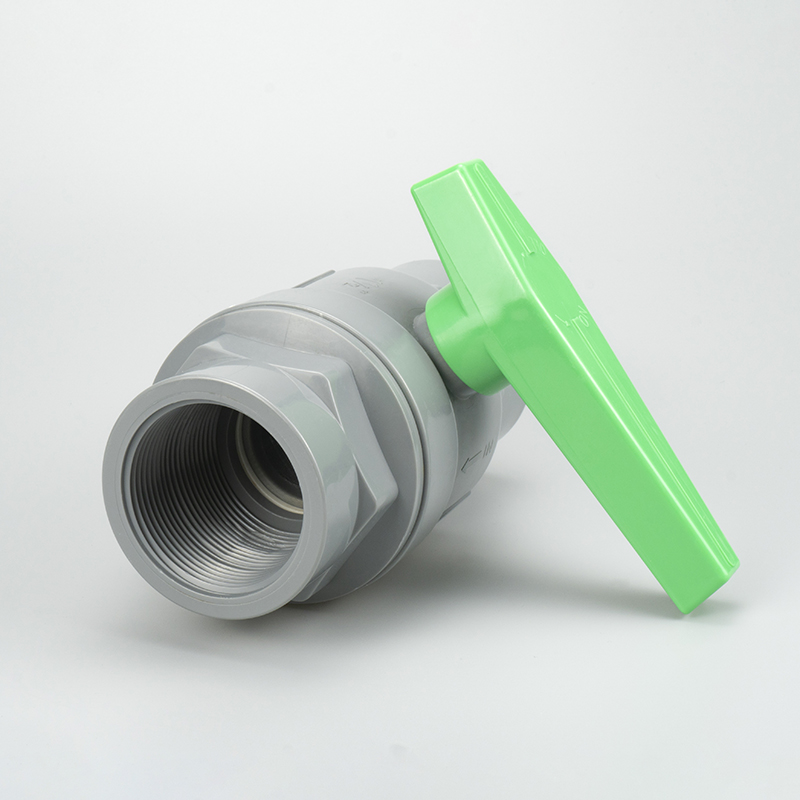

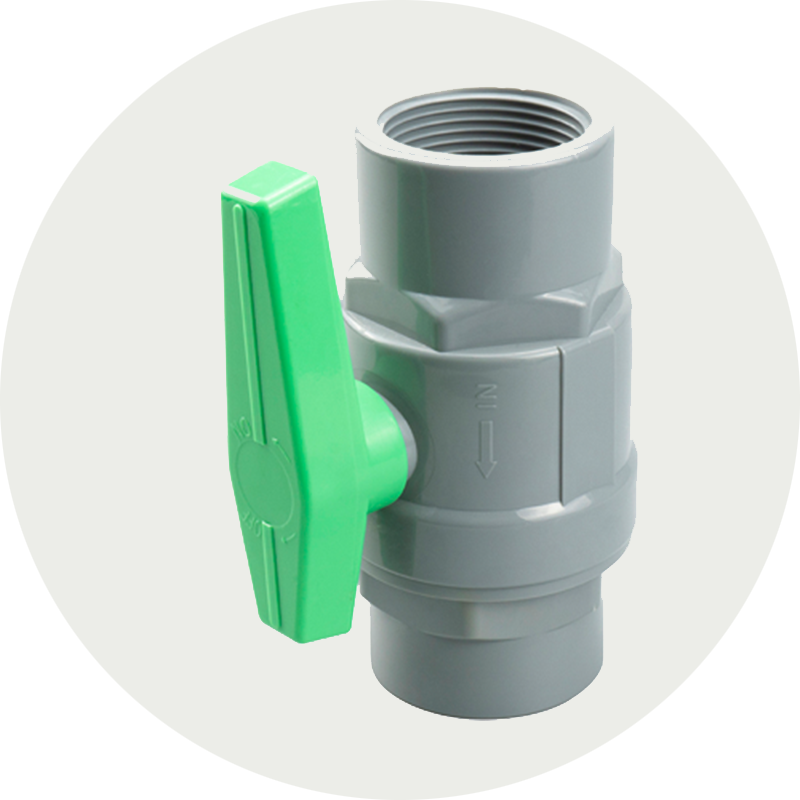

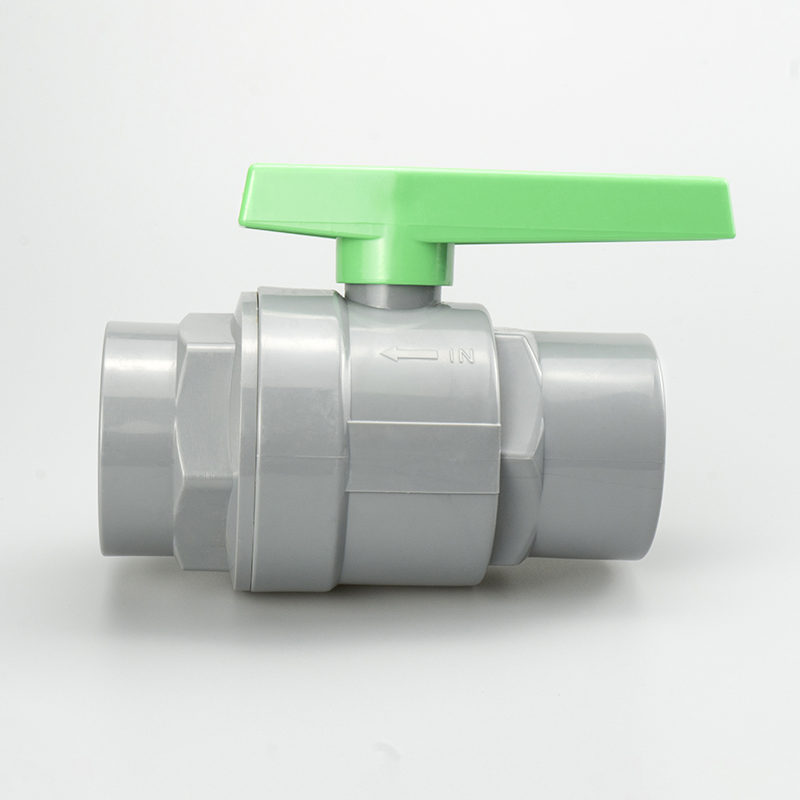

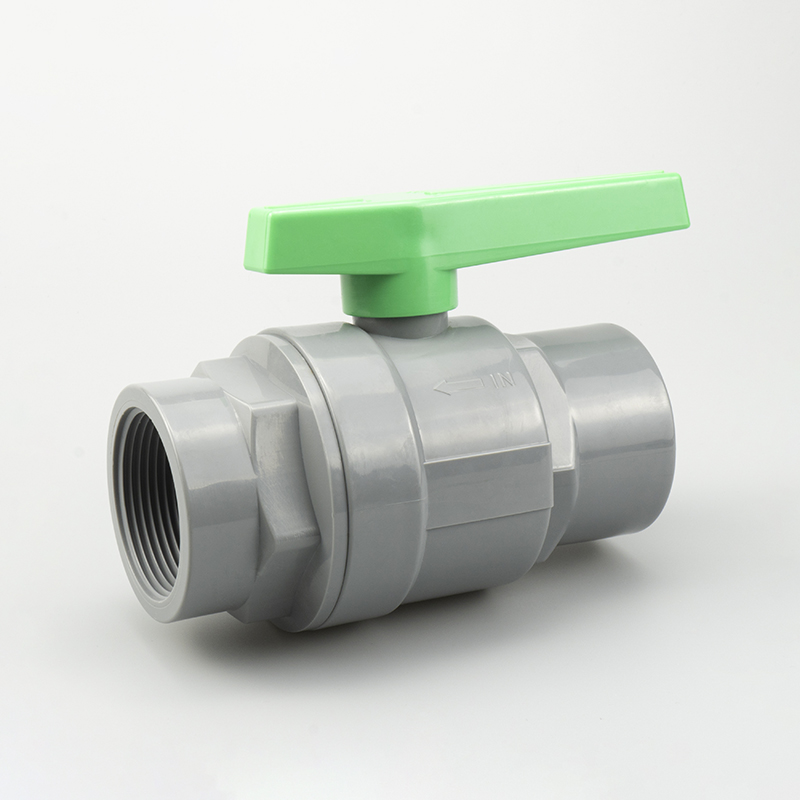

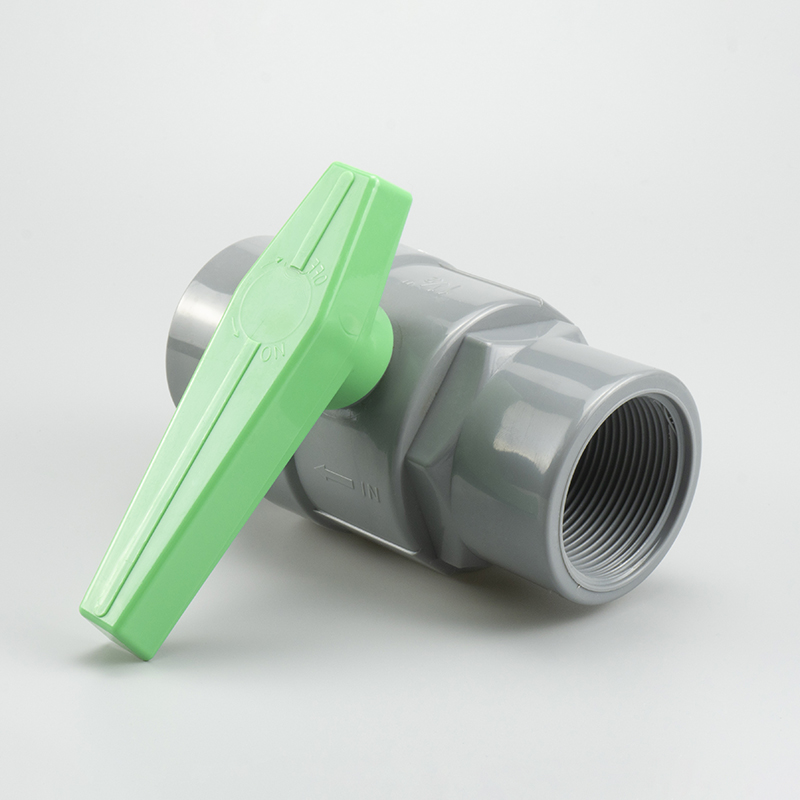

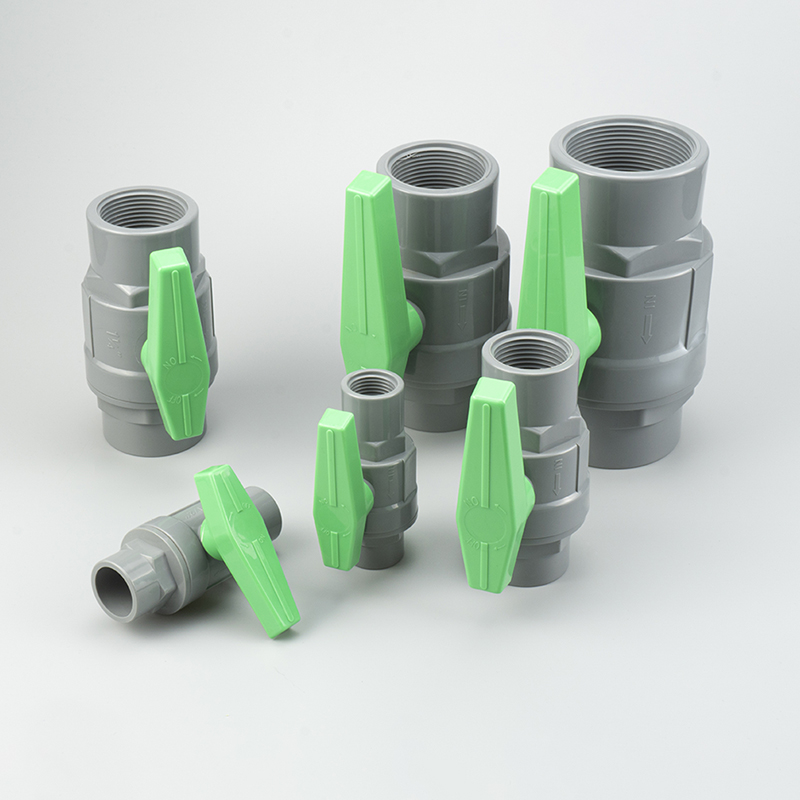

Iivalvu zebhola zePVC ezikumgangatho ophezulu Iimbhobho zokufaka iivalvu zebhola ezimbini ezinesiphatho seplastiki esiluhlaza esinombala oluhlaza okwesibhakabhaka esine-stainless steel handle 3M valve

•
•
•
•
•
•

Inkcazo emfutshane:

Ubungakanani:1/2" - 4"

Isiphelo Esidibeneyo:Isokhethi (ANSI/DIN/JIS/BS)
Umsonto (NPT/BSPT)

Uxinzelelo Lokusebenza:1/2" - 2" PN16=232PSI
2-1/2" - 4" PN10=150PSI

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

FAQ

Iithegi zeMveliso

Izinto zecandelo

iinkcukacha zezinto

HAYI.	Inxalenye	Izinto eziphathekayo	Ubungakanani
1	UMZIMBA	I-UPVC	1
2	I-STEM O-Ring	I-EPDM, i-FPM(NBR)	1
3	I-STEM	I-POM	1
4	IBHOLA	I-ABS PLATING CHROM	1
5	ISITYWINO SESIHLALO	I-TPE, i-TPVC, i-TPO	2
6	PHATHA	I-PVC/ABS	1



Itheyibhile yokuthelekisa iparameter yobungakanani bemodeli

UMGANGATHO												Iyunithi
IMODELI	DN		15	20	25	32	40	50	65	80	100
	USAYIZI		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Intshi
	thd./in	I-NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
		I-BSPT	14	14	11	11	11	11	11	11	11	mm
	I-JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	I-ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	I-DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm

---

---
